Belparts graafmachine hoofdpomp R200 R215 R225 R220-5-7 Hydraulische pomp 31N6-10051 31Q6-10010 Voor Hyundai
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xNaam van het product | hydarulic pomp | Model | R200 R215 R225 R220-7 |
---|---|---|---|
Gewicht | 190kg | Brandnaam | Belparts |
Pakket | Houten doos | Artikelnummer | 31N6-10051 31Q6-10010 |
Hoog licht | R225 Hoofdpomp van de graafmachine,R215 Hoofdpomp van de graafmachine,Hydraulische pomp 31N6-10051 |

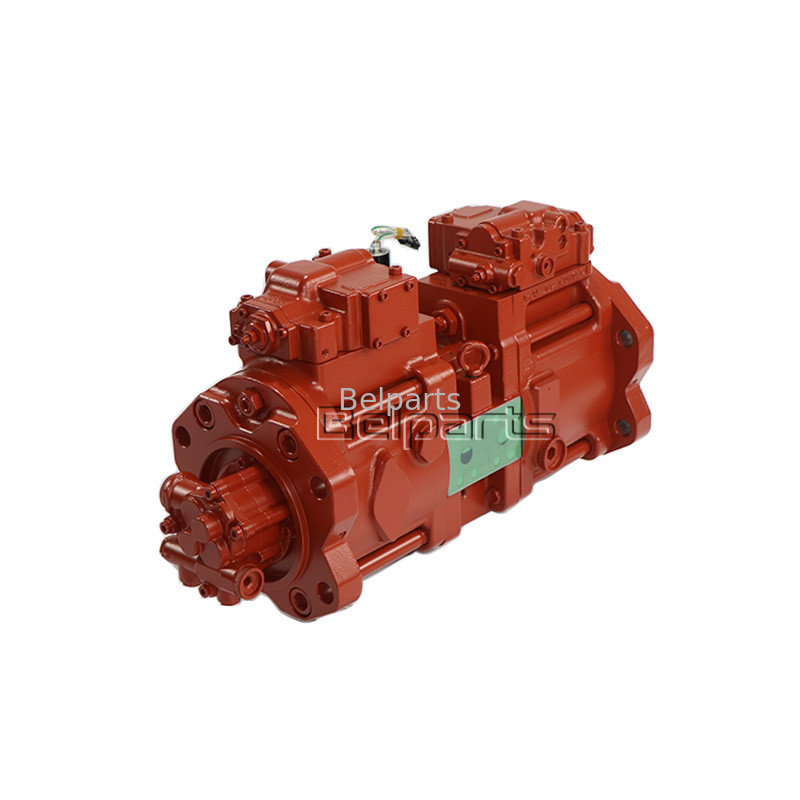

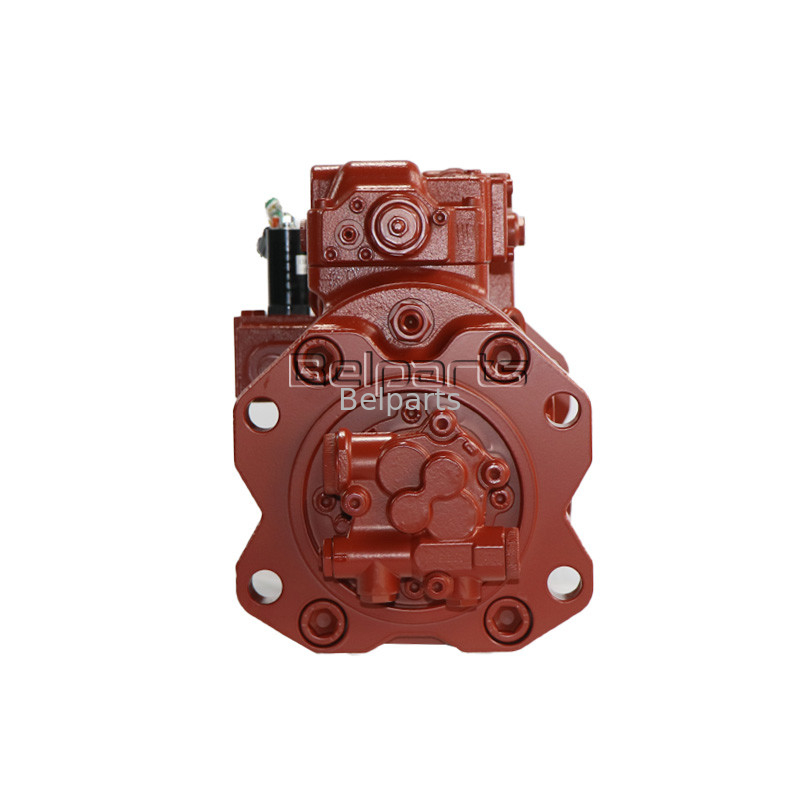

Belparts graafmachine hoofdpomp R200 R215 R225 R220-5-7 hydraulische pomp 31N6-10051 31Q6-10010 voor hyundai
Toepassing: graafmachine
Deelnaam:hydraulische pomp
Deelnummer: 31N6-10051 31Q6-10010
Model:R200 R215 R225 R220-5-7
MOQ: 1pc
Materiaal: staal
Betalingstermijn:T/T, Western Union, paypal, handelsgarantie of indien vereist
Gewicht:190 kg
Merk: Belparts
Toepassing | De volgende egorieën zijn bedoeld: |
Deelnaam | hydraulische pomp |
Deelnummer | 31N6-10051 31Q6-10010 |
Model | R200 R215 R225 R220-7 |
MOQ | 1 pc |
Materiaal | Staal |
Betalingsduur | T/T, Western Union, paypal, handelsgarantie of naar behoefte |
Gewicht | 190 kg |
Brandnaam | Belparts |
# | Deel nr. | Deelnaam | Qty. | Prijsverzoek |
* | 31N6-10051 | Hoofdpomp ASSY *-1,2,3,4 |
1 | |
*-1 | @ | Brandstofinjectiepijp en spuitstuk | 1 | |
111 | XJBN-00077 | Vervaardiging van elektrische voertuigen | 1 | |
113 | XJBN-00078 | Verwijderings- en verwarmingsinstallaties | 1 | |
114 | XJBN-00351 | Koppelingslijn | 1 | |
123 | XJBN-00950 | Lagersroller | 2 | |
124 | XJBN-00080 | Vervaardiging uit produkten van de egorieën 8521 en 8528 | 2 | |
127 | XJBN-00081 | SPACER-LAGER | 4 | |
S141 | XJBN-00067 | Blok-cilinder | 2 | |
S151 | XJBN-00061 | PISTON | 18 | |
S152 | XJBN-00062 | Schoenen | 18 | |
NK153 | XJBN-00082 | Plaat-SET | 2 | |
156 | XJBN-00083 | BUSHING-SFERICAL | 2 | |
157 | XJBN-00084 | VERSPRING-CYLINDER | 18 | |
211 | XJBN-00085 | Plaat-schoen | 2 | |
S212 | XJBN-00070 | Plate-Swash | 2 | |
S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
251 | XJBN-00086 | Ondersteuning | 2 | |
261 | XJBN-00087 | COVER ((F) - SEAL | 1 | |
271 | XJBN-00088 | CASING-PUMP | 2 | |
312 | XJBN-00089 | Blokklep | 1 | |
S313 | XJBN-00065 | Vervaardiging van elektrische voertuigen | 1 | |
S314 | XJBN-00068 | Vervaardiging van elektrische voertuigen | 1 | |
401 | XJBN-00090 | Schroef-hex SOC HD | 8 | |
406 | XJBN-00355 | Schroef-hex SOC HD | 4 | |
466 | XJBN-00356 | PLOG | 2 | |
468 | XJBN-00357 | PLOG | 4 | |
490 | XJBN-00032 | PLOG | 18 | |
S531 | XJBN-00358 | PIN-TILTING | 2 | |
532 | XJBN-00091 | PISTON-SERVO | 2 | |
534 | XJBN-00092 | STOPPER ((L) | 2 | |
535 | XJBN-00093 | STOPPER (s) | 2 | |
S541 | XJBN-00859 | SEAT | 4 | |
S543 | XJBN-00860 | STOPPER | 2 | |
S544 | XJBN-00861 | STOPPER | 2 | |
S545 | XJBN-00359 | BALL-STAIL | 4 | |
S548 | XJBN-00360 | PIN-feed-terug | 2 | |
K702 | XJBN-00918 | O-RING | 2 | |
K710 | XJBN-00095 | O-RING | 1 | |
K717 | XJBN-00096 | O-RING | 4 | |
K724 | XJBN-00361 | O-RING | 16 | |
K725 | XJBN-00362 | O-RING | 4 | |
K728 | XJBN-00363 | O-RING | 4 | |
K732 | XJBN-00912 | O-RING | 2 | |
K774 | XJBN-00098 | Zeepolie | 1 | |
789 | XJBN-00099 | RING-BACK UP | 2 | |
792 | XJBN-00100 | RING van back-up | 2 | |
806 | XJBN-00101 | NUT-HEX | 2 | |
808 | XJBN-00364 | NUT | 2 | |
824 | XJBN-00102 | RING-SNAP | 2 | |
885 | XJBN-00103 | PIN-VALVE-PLAAT | 2 | |
886 | XJBN-00365 | PIN-SPRING | 4 | |
901 | XJBN-00104 | BOLT-EYE | 2 | |
953 | XJBN-00105 | Schroefsets | 2 | |
954 | XJBN-00106 | Schroefsets | 2 | |
981 | XJBN-00391 | Naamplaat | 1 | |
983 | XJBN-00341 | PIN-code | 2 | |
*-2 | @ | Brandstofinjectiepijp en spuitstuk SEE 4020 |
1 | |
*-3 | @ | Brandstofinjectiepijp en spuitstuk SEE 4030 |
1 | |
*-4 | @ | Brandstofinjectiepijp en spuitstuk SEE 4040 |
1 | |
011 | XJBN-00060 | PISTON SUB ASSY Zie illustratie. |
2 | |
013 | XJBN-00063 | CYLINDER ASSY ((RH)) Zie illustratie. |
1 | |
014 | XJBN-00066 | De in de bijlage bij Verordening (EG) nr. 45/2001 vermelde voorschriften zijn van toepassing. Zie illustratie. |
1 | |
030 | XJBN-00069 | SWASH PLATE SUB ASSY Zie illustratie. |
2 | |
041 | XJBN-00072 | Verwijderingskleppen 1 Zie illustratie. |
2 | |
042 | XJBN-00075 | Verwijderingskleppen 2 Zie illustratie. |
2 | |
530 | XJBN-00366 | TILTING PIN ASSY Zie illustratie. |
2 | |
K | XJBN-00971 | Pumpunit SEAL KIT Zie illustratie. |
1 |
