| Delen voor uw MINIhyd GRAAFWERKTUIG van 306E: | |||||
| Pos. | Artikelnummer | Qty | Delennaam | Commentaren | |
| 1 | 6R-7943 M | [2] | SCHROEF (M5X0.8X15-MM.) | ||
| 2 | 180-6213 | [1] | Ring-BEHOUDT | ||
| 3 | 258-0139 | [1] | Verbinding-SCHACHT | ||
| 4 | 2M-9780 | [3] | Verbinding-o-RING | ||
| 5 | 386-6610 | [1] | De LENTE | ||
| 6 | 146-3493 | [1] | SPELD | ||
| 7 | 8T-2503 M | [4] | BOUT-CONTACTDOOS HOOFD (M14X2X35-MM.) | ||
| 8 | 168-3504 | [2] | VERBINDING | ||
| 9 | 258-0135 | [2] | STOP | ||
| 10 | 190-6507 | [1] | Ring-EINDE | ||
| 11 | 9W-2110 | [1] | KOP-VERMINDERD ROL | ||
| 12 | 8J-0412 | [1] | Kop-LAGER | ||
| 13 | 192-7470 | [1] | Verbinding-o-RING | ||
| 14 | 197-2850 | [1] | SCHACHT | ||
| 15 | 168-2203 | [1] | WIG-SCHACHT (3MM THK) | ||
| 16 | 386-6612 | [1] | Lager-WIEG | ||
| 17 | 386-6611 | [1] | Lager-WIEG | ||
| 18 | 398-7457 Y | [1] | DE CONTROLE VAN DE KLEP GP-POMP (STROOMcompensator) (STROOMcompensator) | ||
| 19 | 379-5187 | [1] | De LENTE | ||
| 20 | 333-7840 | [1] | EINDE | ||
| 21 | 398-7458 | [1] | DE CONTROLE VAN DE KLEP GP-POMP (TORSIE DIE SPOEL) (ZUIGER) BEPERKEN | ||

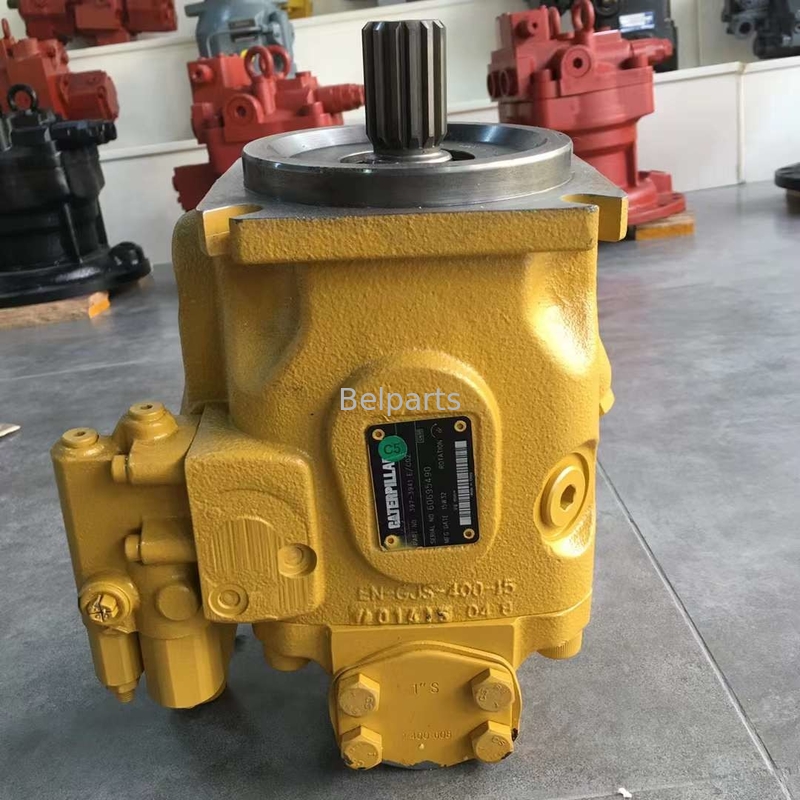

| 22 | 378-2842 | [1] | ROTERENDE GP-POMP | ||
| 23 | 378-2843 | [1] | Plaat-HAVEN | ||
| 24 | 9S-8006 | [3] | STOP (7/8-14-THD) | ||
| 25 | 3P-1210 | [1] | Kegel-LAGER | ||
| 26 | 9W-2109 | [1] | Kegel-LAGER | ||
| M | METRISCH DEEL | ||||
| Y | AFZONDERLIJKE ILLUSTRATIE | ||||
