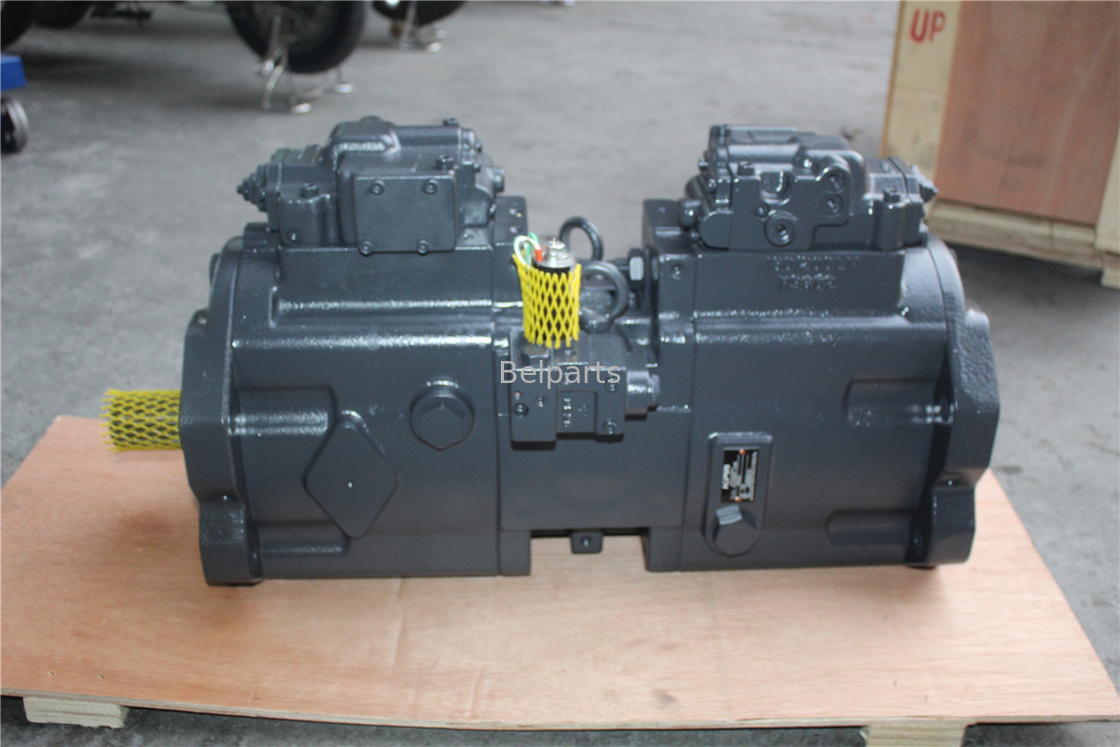

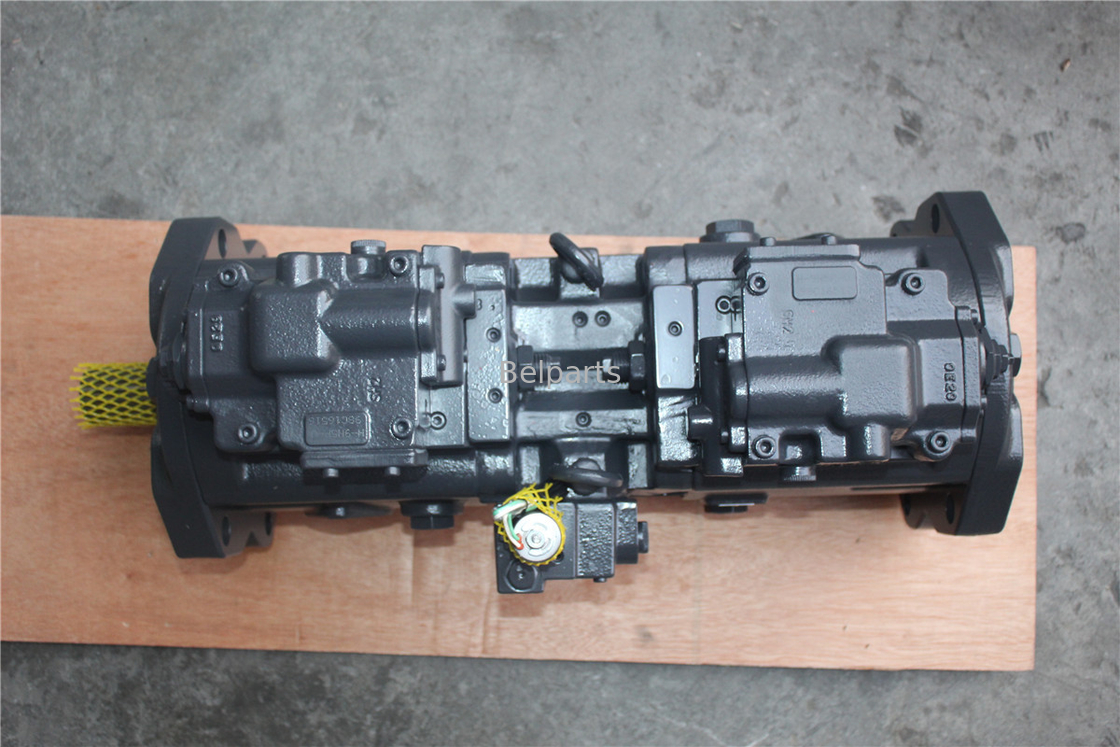

Belparts graafmachine hoofdpomp R480LC-9 R520LC-9 R370LC-7 hydraulische pomp 31QB-10011 31NA-10020 voor hyundai
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xModel | R480LC-9 R520LC-9 R370LC-7 | Garantie | 1 jaar |
---|---|---|---|
Gewicht | 40 kg | Voorwaarde | 100% nieuw |
Textuur | Staal | Deelnaam | Hydraulische pomp/Hoofdpomp |
Kwaliteit | Hoge kwaliteit | ||
Hoog licht | Hyundai graafmachine hoofdpomp,R480LC-9 hoofdpomp van de graafmachine,R370LC-7 hoofdpomp van de graafmachine |
Belparts graafmachine hoofdpomp R480LC-9 R520LC-9 R370LC-7 hydraulische pomp 31QB-10011 31NA-10020 voor hyundai
Productbeschrijving
Dampmachine Hydraulische pump |
|
Plaats van oorsprong: |
China (vastland) |
Model: |
R480LC-9 R520LC-9 R370LC-7 |
Deelnummer: |
31B-10011 31NA-10020 |
MOQ: |
1 stuks |
Betalingsduur: |
T/T, Alibaba handelsgarantie, PayPal |
Levertijd: |
Binnen 1 tot 7 dagen na ontvangst van de betaling |
Verpakking: |
Standaardverpakking voor uitvoer of indien vereist |
# | Deel nr. | Deelnaam | Qty. | Prijsverzoek |
* | 31QB-10011 | Hoofdpomp *-1,-2,-3,-4 |
1 | |
*-1 | @ | Brandstofinjectiepijp en spuitstuk | 1 | |
111 | XJBN-00976 | SHAFT-DRIVE ((F) | 1 | |
113 | XJBN-00977 | SHAFT-DRIVE ((R)) | 1 | |
114 | XJBN-00572 | Koppelingslijn | 1 | |
123 | XJBN-00571 | Lagersroller | 2 | |
124 | XJBN-00978 | Vervaardiging uit produkten van de categorieën 8521 en 8528 | 2 | |
127 | XJBN-00569 | SPACER-LAGER | 3 | |
130 | XJBN-00568 | Booster | 1 | |
N012 | XJBN-00680 | Blok-cilinder | 2 | |
N151 | XJBN-00681 | PISTON | 18 | |
N152 | XJBN-01522 | Schoenen | 18 | |
153 | XJBN-00683 | Plaat-SET | 2 | |
156 | XJBN-00564 | BUSHING-SFERICAL | 2 | |
157 | XJBN-00541 | VERSPRING-CYLINDER | 18 | |
211 | XJBN-00023 | Plaat-schoen | 2 | |
N212 | XJBN-00012 | Plate-Swash | 2 | |
N214 | XJBN-00013 | BUSHING-TILTING | 2 | |
251 | XJBN-00560 | - Ik heb een probleem. | 2 | |
261 | XJBN-00025 | COVER ((FR) - SEAL | 1 | |
263 | XJBN-00979 | COVER ((RR) -SEAL | 1 | |
271 | XJBN-01594 | CASING-PUMP | 2 | |
311 | XJBN-00559 | Verwijderingsinstallatie | 1 | |
312 | XJBN-00558 | Verwijderingsinstallatie | 1 | |
N313 | XJBN-01387 | Plaat ((R) -klep | 1 | |
N314 | XJBN-01388 | Plaat ((L) -klep | 1 | |
401 | XJBN-00028 | Schroef | 4 | |
402 | XJBN-00555 | Screw-hex SOC HD | 4 | |
406 | XJBN-00355 | Screw-hex SOC HD | 8 | |
466 | XJBN-00356 | PLOG | 4 | |
468 | XJBN-00031 | PLOG | 4 | |
490 | XJBN-00032 | PLOG | 28 | |
492 | Voor de toepassing van deze verordening geldt: | PLOG | 1 | |
N531 | XJBN-00981 | PIN-TILTING | 2 | |
532 | XJBN-00703 | PISTON-SERVO | 2 | |
534 | XJBN-00034 | STOPPER ((L) | 2 | |
535 | XJBN-00035 | STOPPER (s) | 2 | |
N548 | XJBN-00360 | PIN-feed-terug | 2 | |
702 | XJBN-00040 | O-RING | 2 | |
706 | XJBN-00982 | O-RING | 1 | |
710 | XJBN-00983 | O-RING | 2 | |
717 | XJBN-00984 | O-RING | 2 | |
719 | XJBN-00985 | O-RING | 3 | |
724 | XJBN-00902 | O-RING | 15 | |
725 | XJBN-00903 | O-RING | 10 | |
728 | XJBN-00905 | O-RING | 4 | |
732 | XJBN-00047 | O-RING | 2 | |
774 | XJBN-01595 | Zeepolie | 1 | |
789 | XJBN-00049 | RING-BACK UP | 2 | |
792 | XJBN-00050 | RING-BACK UP | 2 | |
808 | XJBN-00051 | NUT | 4 | |
824 | XJBN-00052 | RING-SNAP | 2 | |
885 | XJBN-00053 | PIN-2 | 2 | |
886 | XJBN-00054 | PIN-SPRING | 5 | |
901 | XJBN-00055 | BOLT-EYE | 2 | |
953 | XJBN-00056 | Schroefsets | 2 | |
954 | XJBN-00553 | Schroefsets | 2 | |
956 | XJBN-01181 | Schroefsets | 8 | |
981 | XJBN-00156 | Naamplaat | 1 | |
983 | XJBN-00455 | PIN-code | 2 | |
*-2 | @ | Brandstofinjectiepijp en spuitstuk Zie 4020, FRONT |
1 | |
*-2 | @ | Brandstofinjectiepijp en spuitstuk Zie 4030, Achterste |
1 | |
*-3 | @ | Brandstofinjectiepijp en spuitstuk SEE 4040 |
1 | |
S011 | XJBN-01523 | PISTON ASSY Zie illustratie. |
2 | |
S013 | XJBN-01383 | Cylinder ASSY-RH Zie illustratie. |
1 | |
S014 | XJBN-01384 | CYLINDER ASSY-LH Zie illustratie. |
1 | |
S030 | XJBN-00011 | SWASH PLATE ASSY Zie illustratie. |
2 | |
S530 | XJBN-00986 | TILTING PIN ASSY Zie illustratie. |
2 | |
N | @ | Brandstofinjectiepijp en spuitstuk | AR |
Model |
Nominale verplaatsing (ml/r) |
Druk ((MPa) | Versnelling ((r/min) | Volumetrisch efficiëntie (≥%) |
L1 | Gewicht (kg) |
||||
Geclassificeerd |
Maximaal |
- Min. |
Geclassificeerd |
Maximaal |
||||||
CBXM-F10-AT** | 10 | 20 | 25 | 800 | 2000 | 2500 | 92 | 72 | 92 | 1.9 |
CBXM-F16.8-AT** | 16.8 | 80.5 | 100.5 | 2.2 | ||||||
CBXM-F2O-AT** | 20 | 84.5 | 104.5 | 2.3 |
Model |
Nominale verplaatsing (ml/r) |
Druk ((MPa) | Versnelling ((r/min) | Volumetrisch efficiëntie (≥%) |
Gewicht (kg) |
||
Geclassificeerd |
Maximaal |
Optimale snelheid |
Versnellingsbereik |
||||
KS55-G14 | 14 | 20 | 25 | 1500 ¢2500 | 600 ¢ 3000 | 92 | |
KS55-G17 | 17 | 20 | 25 | 1500 tot 2500 | 600 ¢ 3000 | 92 |
