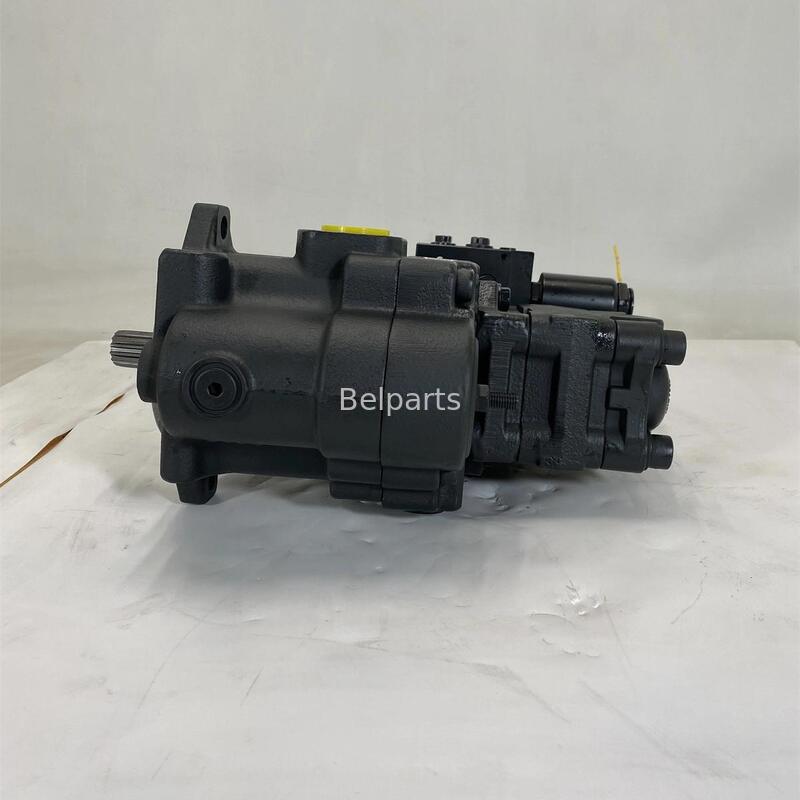

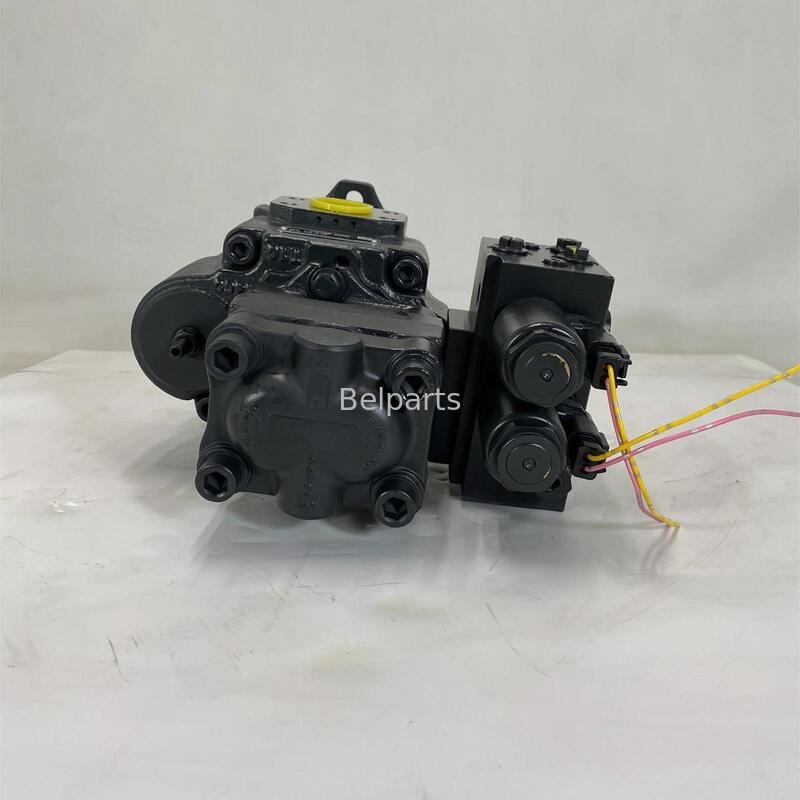

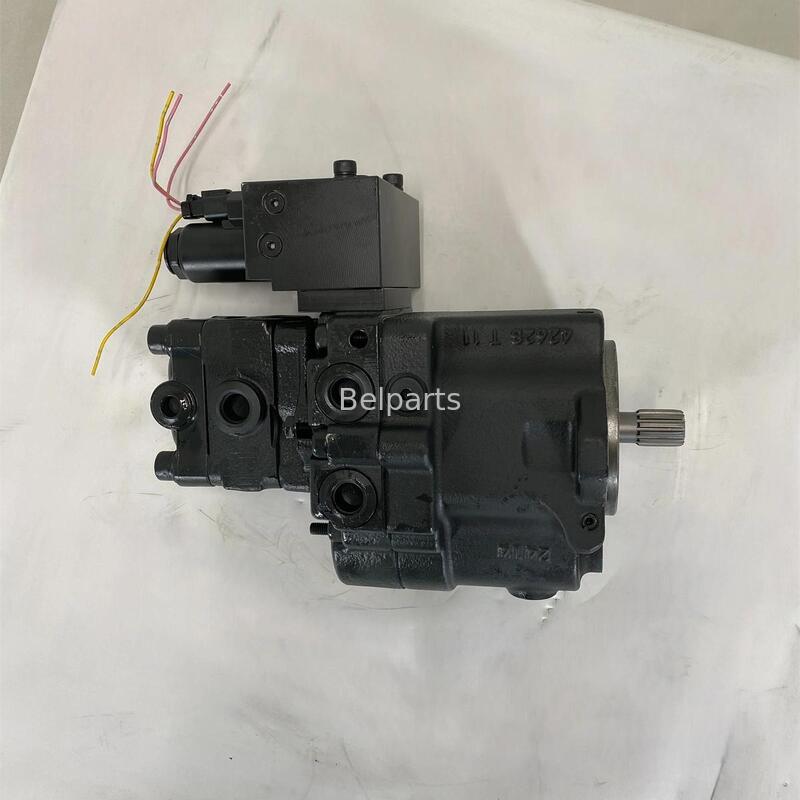

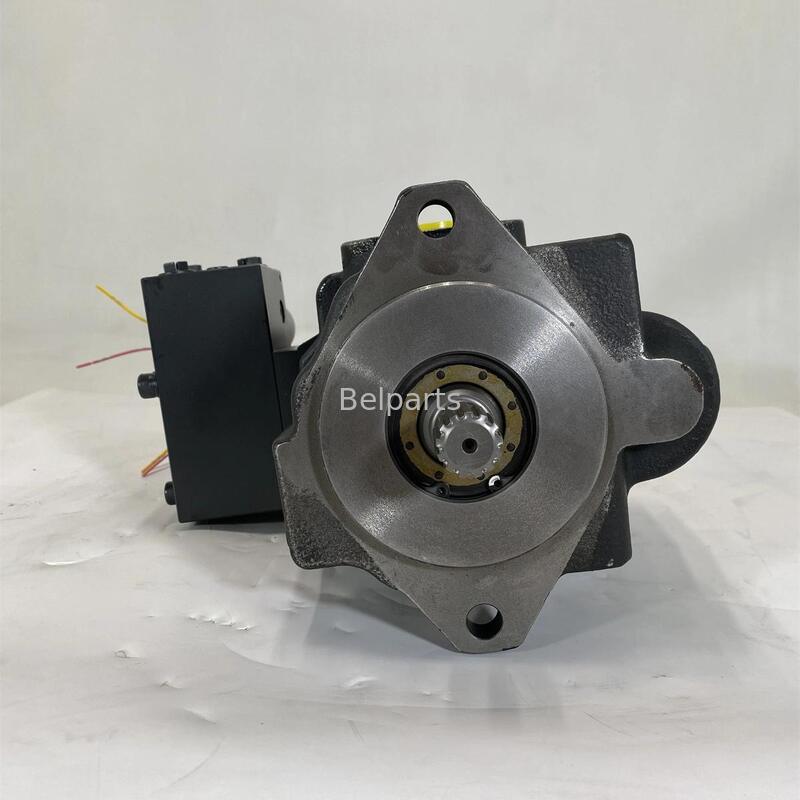

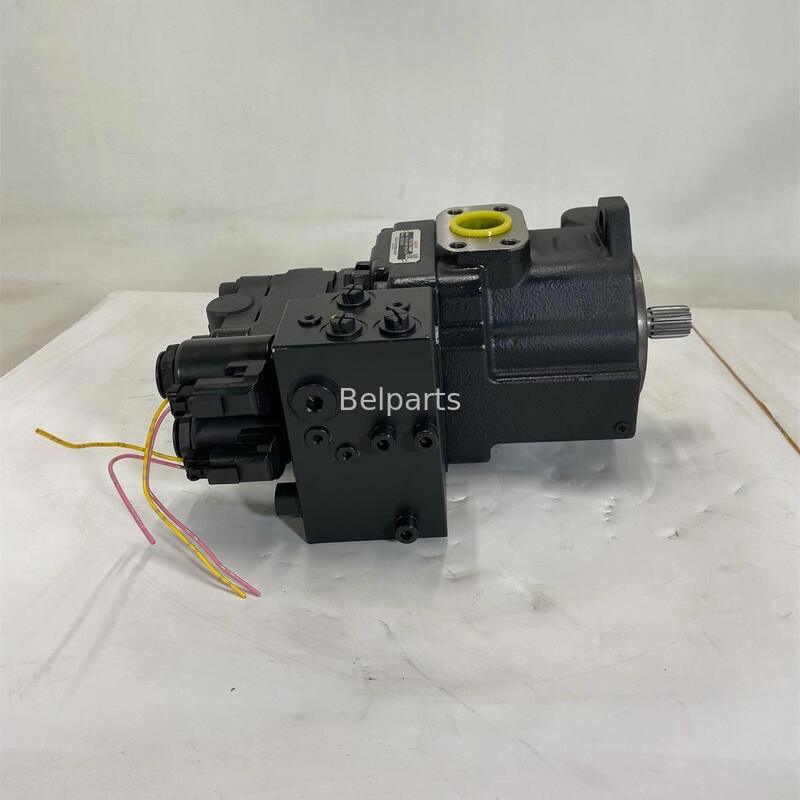

Name: YANMAR B25V B25V-1 B30V-1 Main Hydraulic Pump 172441-73100 172422-73101 OEM PVD-1B-29BP-12G5-4614F For Mini Excavator Parts
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: B25V B25V-1 B30V-1
Price: 475.00 USD
Availability: InStock

Thuis > producten > de delen van het hydraulische pompgraafwerktuig >

YANMAR B25V B25V-1 B30V-1 Main Hydraulic Pump 172441-73100 172422-73101 OEM PVD-1B-29BP-12G5-4614F For Mini Excavator Parts

Plaats van herkomst:

JAPAN

Merknaam:

BELPARTS

Certificering:

2006/42/EC ISO9001

Modelnummer:

B25V B25V-1 B30V-1

Contacteer ons

Verzoek om een Citaat

YANMAR B25V B25V-1 B30V-1 Main Hydraulic Pump 172441-73100 172422-73101 OEM PVD-1B-29BP-12G5-4614F For Mini Excavator Parts

Productgegevens

Sollicitatie:

graafmachine

Verzending:

Zee/lucht/Express DHL FEDEX UPS

Garantie:

1 jaar

type:

PVD-1B-29BP-12G5-4614F

Artikelnummer:

172441-73100 172422-73101

Onderdeelnaam:

hydraulische pomp

Kwaliteit:

OEM

Model:

B25V B25V-1 B30V-1

Betaling en verzendvoorwaarden

Min. bestelaantal

1 STKS

Prijs

Negotiated price

Verpakking Details

Houten kistverpakking

Levertijd

1~5 dagen

Betalingscondities

T/T, handelsverzekering, PayPal, L/C, D/P, D/A, Western Union, MoneyGram

Levering vermogen

100 stuks / maanden

Verwante producten

YANMAR VIO45 VIO45-5 VIO55-5B VIO55-6A VIO55-6B Main Hydraulic Pump PSVD2-21E B0600-21031 OEM 172961-73102 For Mini Excavator Parts

Vind de beste prijs

Groepspomp R55-7 R60 Hydraulische pomp 31M8-10020

Vind de beste prijs

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

Vind de beste prijs

Hydraulische pomp Kubota KX161-3 KX163-5 KX165 KX183-3 Mini Graafmachine Onderdelen KYB PSVL2-27CG-1 B0210-27001 RD411-61113

Vind de beste prijs

Contacteer ons

+86 19924616345

ron@belparts-china.com

86-020-32384870

Contact nu

Productomschrijving

172441-73100 172422-73101 PVD-1B-29BP-12G5-4614F Main Hydraulic Pump for Yanmar B25V B25V-1 B30V-1 Mini Excavator (Point-by-Point Layout)

1. OEM Part Number & Machine Compatibility

Original pump model: Nachi PVD-1B-29BP-12G5-4614F variable displacement piston pump
Yanmar OEM part numbers: 172441-73100, 172422-73101
Directly compatible mini excavator models: Yanmar B25V, B25V-1, B30V-1
Two listed OEM numbers are fully interchangeable, sharing identical mounting structure and internal hydraulic configuration for cross replacement

2. Core Technical Specifications

Structure type: Integrated assembly of variable axial piston main pump plus built-in pilot gear charge pump
Main pump displacement: 29 cc/rev
Rated continuous working pressure: 24.5 MPa; factory preset maximum relief pressure: 31.4 MPa
Operating rotation range perfectly calibrated to match the original engine speed setting of B25V and B30V-1 series machines
Input shaft spline, mounting flange hole layout and all hydraulic port positions strictly follow OEM dimensional specifications
Pump housing is manufactured from ductile iron; internal pistons, valve plates and friction components adopt quenched wear-resistant alloy steel for extended service life

3. Internal Structure & Functional Introduction

Main piston pump delivers high-pressure hydraulic oil to actuate boom, arm, bucket, travel and swing movements
Integrated pilot gear pump supplies consistent pressure oil for pilot control circuit and system makeup oil replenishment
Built-in power adjustment regulator automatically modulates pump output flow according to load fluctuations, preventing engine stall under heavy digging working conditions
Compact integrated design saves installation space inside the compact hydraulic compartment of small mini excavators

4. Product Advantages

Exact 1:1 OEM casting dimensions with matched bolt hole pattern and port layout, supporting plug-and-play replacement without hydraulic pipe or chassis modification
Each finished pump undergoes comprehensive hydraulic bench testing covering pressure stability, flow consistency and internal leakage inspection prior to delivery
Complete range of maintenance spare parts including overhaul seal kits, piston assemblies, swash plates and valve plates are available for separate component replacement during repair work
Dual interchangeable part numbers fit three machine variants, lowering inventory stocking pressure for dealers and repair workshops

5. Packaging & Global Delivery Details

Input shaft and all hydraulic ports are coated with anti-rust grease and sealed with protective dust plugs
The whole pump is wrapped with moisture-proof plastic film and secured inside export-grade solid wooden crate to avoid collision and moisture damage during long-distance sea or air transit
In-stock units can be arranged for shipment within 3 to 5 working days after order confirmation
Multiple global shipping solutions are supported: international air express, sea LCL/FCL bulk shipment and overland truck transportation for Southeast Asian customers

6. FAQ

Q: Are 172441-73100 and 172422-73101 mutually replaceable? A: Yes, these two OEM part numbers correspond to the same Nachi PVD-1B-29BP-12G5-4614F pump structure, fully interchangeable for B25V, B25V-1 and B30V-1 installation.
Q: Can this pump be installed on all three listed Yanmar models directly? A: Yes, unified mounting size and internal hydraulic calibration make it a direct replacement part for B25V, B25V-1 and B30V-1 without extra adjustment.
Q: Are separate repair components available for this hydraulic pump? A: Matching overhaul seal kits, piston shoe assemblies, valve plates, swash plates and independent pilot gear pump spare parts are all in stock for partial overhaul maintenance.
