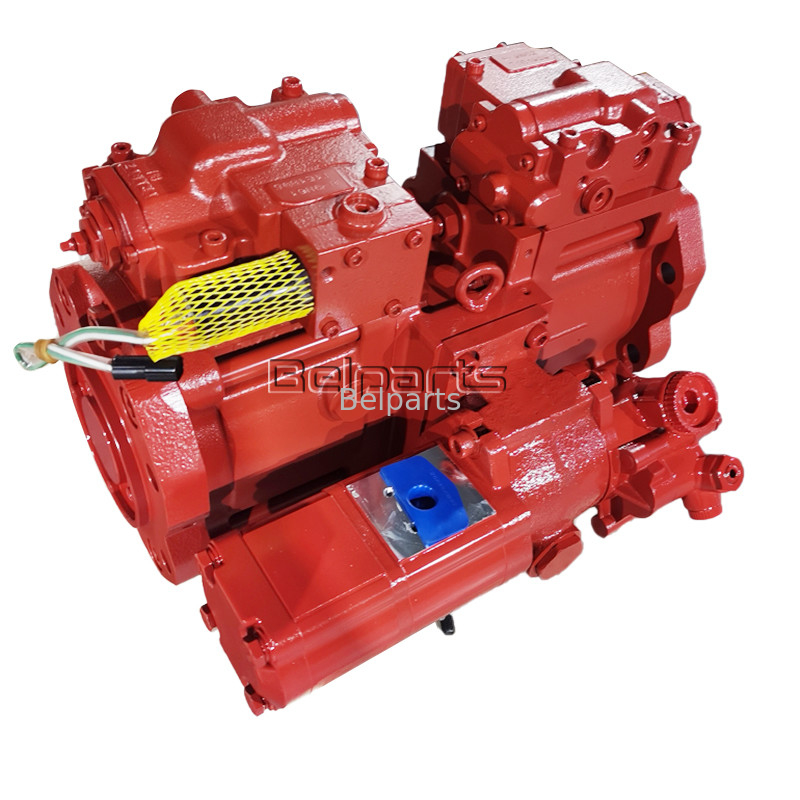

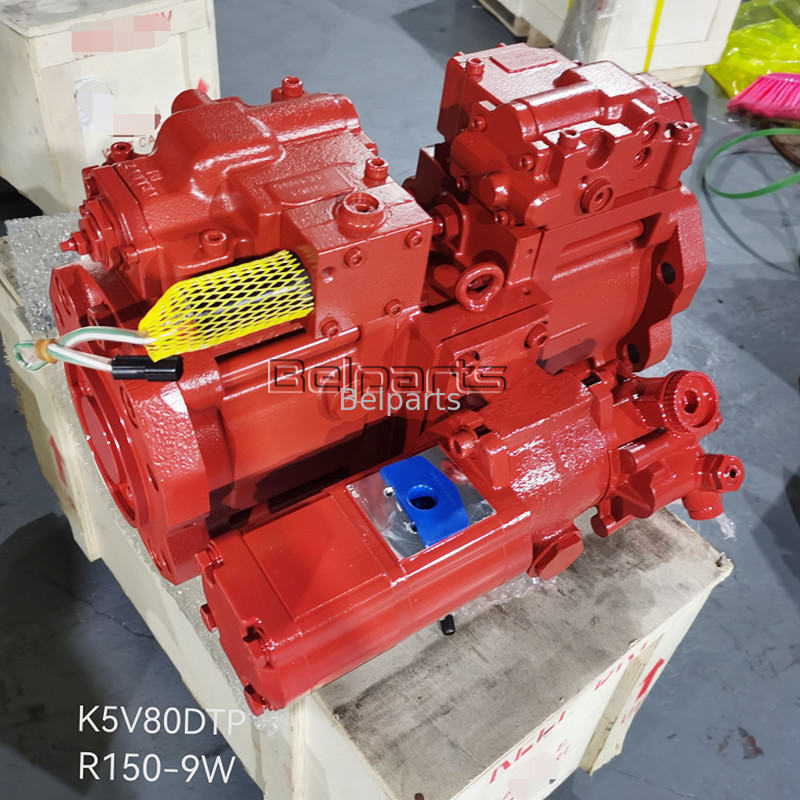

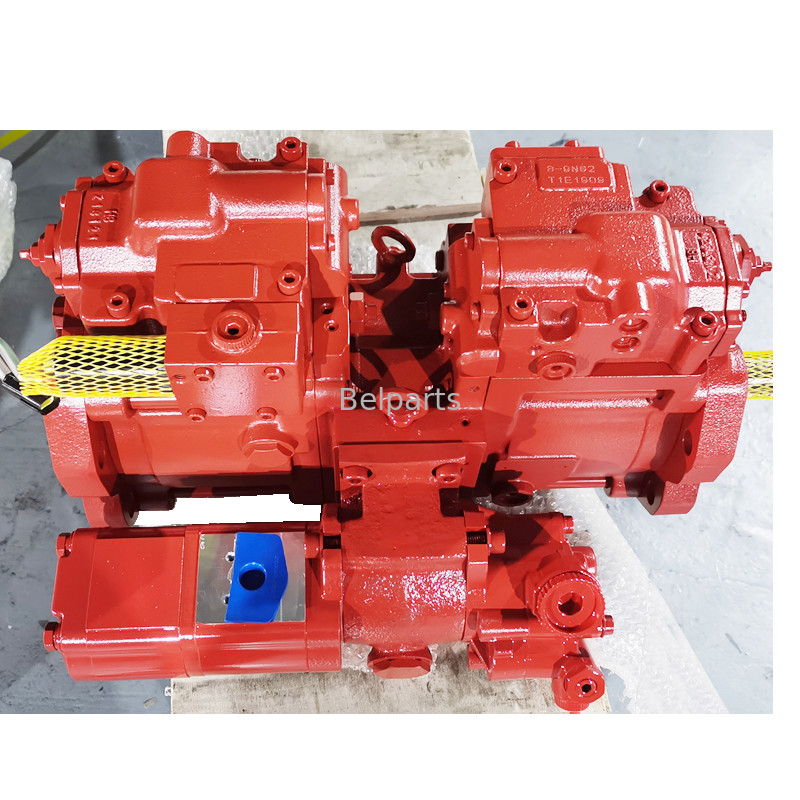

Belparts graafmachine hoofdpomp R145CR-9 hydraulische pomp 31N4-10050 voor hyundai
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xModel | R145CR-9 | Garantie | 1 jaar |
---|---|---|---|
Gewicht | 40 kg | Voorwaarde | 100% nieuw |
Textuur | Staal | Deelnaam | Hydraulische pomp/Hoofdpomp |
Kwaliteit | Hoge kwaliteit | ||
Hoog licht | 31N4-10050 graafmachine hoofdpomp Hyundai graafmachine hoofdpomp,hyundai excavator main pump |
Belparts graafmachine hoofdpomp R145CR-9 hydraulische pomp 31N4-10050 voor hyundai
Productbeschrijving
Naam van het product | Dampmachine Hydraulische pump |
Plaats van oorsprong: | China (vastland) |
Model: | R145CR-9 |
Deelnummer: | 31N4-10050 |
MOQ: | 1 stuks |
Betalingsduur: | T/T, Alibaba handelsgarantie, PayPal |
Levertijd: | Binnen 1 tot 7 dagen na ontvangst van de betaling |
Verpakking: | Standaardverpakking voor uitvoer of indien vereist |
# | Deel nr. | Deelnaam | Qty. | Prijsverzoek |
* | 31N4-10050 | Hoofdpomp Met PTO |
1 | |
*-1 | @ | Brandstofinjectiepijp en spuitstuk | 1 | |
111 | XJBN-01432 | SHAFT ((F) - DRIVE | 1 | |
113 | XJBN-01433 | SHAFT ((R) - DRIVE | 1 | |
116 | XJBN-01434 | Gear-1ST | 1 | |
123 | XJBN-01435 | Lagersroller | 2 | |
124 | XJBN-01436 | Vervaardiging uit produkten van de categorieën 8521 en 8528 | 2 | |
127 | XJBN-00806 | SPACER-LAGER | 2 | |
S141 | XJBN-01437 | Blok-cilinder | 2 | |
S151 | XJBN-01438 | PISTON | 18 | |
S152 | XJBN-01278 | Schoenen | 18 | |
153 | XJBN-01439 | Plaat-SET | 2 | |
156 | XJBN-01440 | BUSHING-SFERICAL | 2 | |
157 | XJBN-00084 | VERSPRING-CYLINDER | 12 | |
211 | XJBN-01441 | Plaat-schoen | 2 | |
S212 | XJBN-01442 | Plate-Swash | 2 | |
S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
N251 | XJBN-01602 | Ondersteuning | 2 | |
S255 | XJBN-01603 | PIN-LOCK | 2 | |
261 | XJBN-01445 | COVER ((F) - SEAL | 1 | |
263 | XJBN-01446 | COVER ((R) -SEAL | 1 | |
N271 | XJBN-01604 | KASING-FRONT PUMP | 1 | |
N272 | XJBN-01605 | Vervaardiging van elektrische motoren | 1 | |
312 | XJBN-01449 | Blokklep | 1 | |
S313 | XJBN-01450 | Plaat ((R) -klep | 1 | |
S314 | XJBN-01451 | Plaat ((L) -klep | 1 | |
401 | XJBN-01452 | Schroef | 2 | |
402 | XJBN-01453 | Schroef | 2 | |
406 | XJBN-00813 | Schroef-hex S H C | 4 | |
415 | XJBN-00029 | Schroef-hex | 4 | |
466 | XJBN-00749 | PLOG | 2 | |
467 | XJBN-00814 | PLOG | 2 | |
468 | XJBN-01219 | PLOG | 4 | |
490 | XJBN-00032 | PLOG | 9 | |
S531 | XJBN-01458 | PIN-TILTING | 2 | |
532 | XJBN-01459 | PISTON-SERVO | 2 | |
S533 | XJBN-01460 | PLUG-QMIN | 2 | |
534 | XJBN-00816 | STOPPER ((L) | 2 | |
S535 | XJBN-01461 | STOPPER (s) | 2 | |
S548 | XJBN-00360 | PIN-feed-terug | 2 | |
702 | XJBN-00817 | O-RING | 2 | |
710 | XJBN-01456 | O-RING | 1 | |
711 | XJBN-00900 | O-RING | 1 | |
717 | XJBN-01457 | O-RING | 2 | |
723 | XJBN-00903 | O-RING | 6 | |
724 | XJBN-00902 | O-RING | 12 | |
727 | XJBN-00912 | O-RING | 4 | |
S728 | XJBN-01606 | O-RING | 2 | |
S732 | XJBN-01462 | O-RING | 4 | |
S733 | XJBN-01463 | O-RING | 2 | |
734 | XJBN-00899 | O-RING | 1 | |
774 | XJBN-01579 | OIL SEAL | 1 | |
S789 | XJBN-01464 | RING-BACK UP | 2 | |
792 | XJBN-00454 | RING BACK-UP | 2 | |
S806 | XJBN-01465 | NUT-HEX | 2 | |
808 | XJBN-00101 | NUT-HEX | 2 | |
824 | XJBN-00821 | RING-SNAP | 2 | |
886 | XJBN-00054 | PIN-SPRING | 4 | |
901 | XJBN-00104 | BOLT-EYE | 2 | |
S953 | XJBN-01467 | Schroefsets | 2 | |
954 | XJBN-00392 | Schroefsets | 2 | |
981 | XJBN-00156 | Naamplaat | 1 | |
983 | XJBN-00455 | PIN-code | 2 | |
5 | XJBN-01609 | PTO ASSY | 2 | |
5 tegen 1 | XJBN-00160 | Schroefdoos | 2 | |
5-2. | XJBN-00725 | Socket-flangen | 4 | |
5-3. | XJBN-00031 | PLOG | 1 | |
5-4 | XJBN-00387 | O-RING | 1 | |
5-5. | XJBN-00046 | O-RING | 1 | |
5-6 | XJBN-01023 | PIN-SPRING | 1 | |
*-3 | @ | Brandstofinjectiepijp en spuitstuk SEE 4030 |
1 | |
*-2 | @ | Brandstofinjectiepijp en spuitstuk SEE 4020 |
2 | |
011 | XJBN-01424 | PISTON SUB ASSY Zie illustratie. |
2 | |
013 | XJBN-01425 | CYLINDER SUB ASSY-RH Zie illustratie. |
1 | |
014 | XJBN-01426 | CYLINDER SUB ASSY-LH Zie illustratie. |
1 | |
030 | XJBN-01427 | SWASH PLATE SUB ASSY Zie illustratie. |
2 | |
257 | XJBN-01607 | LOCK PIN SUB ASSY Zie illustratie. |
2 | |
530 | XJBN-01430 | Tilting pin sub assy Zie illustratie. |
2 | |
550 | XJBN-01431 | QMIN PLUG SUB ASSY Zie illustratie. |
2 | |
N | @ | Brandstofinjectiepijp en spuitstuk | AR |
Model |
Nominale verplaatsing ((ml/r) |
Druk ((MPa) | Versnelling ((r/min) | Volumetrisch efficiëntie ((≥%) |
L1 | L | Gewicht (kg) |
||
Geclassificeerd |
Maximaal |
Optimaal snelheid |
Versnellingsbereik |
||||||
CMF-F306-AL** | 06 | 20 | 25 | 1500 tot 2500 | 800 tot 3000 | 90 | 89 | 138.5 | 4 |
CMF-F308-AL** | 08 | 90.3 | 141 | 4.4 | |||||
CMF-F310-AL** | 10 | 92 | 144 | 4.2 | |||||
CMF-F316-AL** | 16 | 97 | 154 | 4.3 | |||||
CMF-F320-AL** | 20 | 100.5 | 161 | 4.4 | |||||
CMF-F325-AL** | 25 | 105 | 170 | 4.5 |
